Product Overview

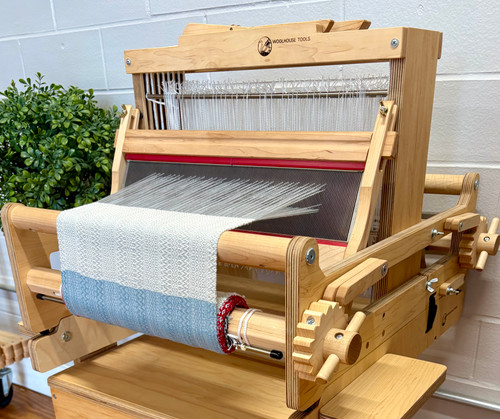

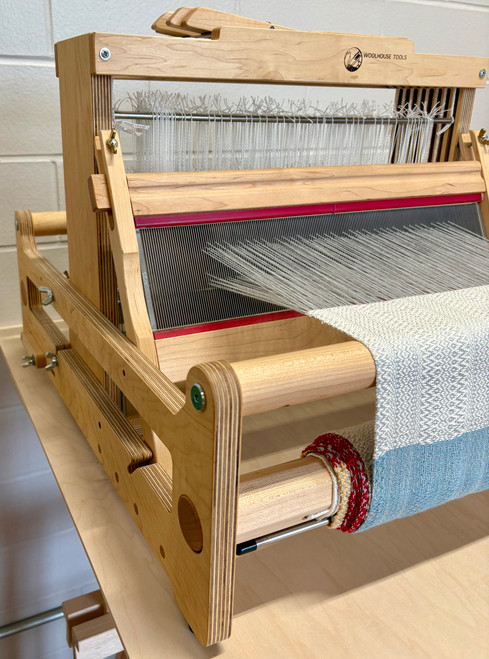

8-Shaft Woolhouse Tools Norah Loom
Designed for lightness and portability, our Norah table looms are complete weaver’s tools. They have graded length shaft control keys so fingers can easily identify which keys to lift or return. Warp control pawls and ratchets are outside where the weaver can easily reach them. Changing sheds is an extraordinarily smooth action because cords run over 16 maple wood pulleys, never dragged over rods or around eyelets.
Norah allows for secure beater stowage. Norah breast/back beams are 1-1/4" hard maple dowels with embedded cross dowel connectors. Cross dowels can be tightened without fear of them pulling out, and allow users to remove the breast/back beam and replace it with the 4mm wrench.
Easy lift keys provide adequate shed for flat shuttles & slim boat shuttles.
Double pawls, back and front, make 32 stops per turn.
Modern Woolhouse looms look to capture the best of Original Woolhouse designs while utilizing the versatility and cost-savings off plywood.
Quick Fold: unique to Modern Norah & Alice, Quick Fold requires the user to fully remove two thumb screws and loosen the other two. Looms with Quick Fold can be folded with tension on a warp in place or without a warp. Beater is stowed using Beater Locks when looms are folded without a warp in place.
Woolhouse looms have three beater positions. The beater is not connected to the base, allowing users to quickly move it between warp advances. The beater position closest to the weaver holds the beater in quick fold.
Rubber feet provide protection for table top.
Ratchet & Pawl: Wood ratchet and pawls delightfully turn the beam along 32 stops.
Dimensions:
Weaving Width: 16”
LxWxH: 27”x22.5”x17”
Weight: 18 lbs
Shafts: 8
Folding: Quick Fold (25”x22.5”x8”)
Accessories:
- Base and Castle Assembly
- Beater Assembly
- 400x Texsolv Heddles
- Stainless Steel Reed
- 2x Lease Sticks
- 2x Apron Rods (w/4 Vinyl Caps)
- Texsolv Apron Cords
- 2x Stick Shuttles
- 5/32” Hex Wrench
- 16x Steel Shaft Rods
Add a Norah Studio Stand and a Bench to make this weaving kit complete!
Each loom is individually handcrafted in our Cincinnati, OH studio.
